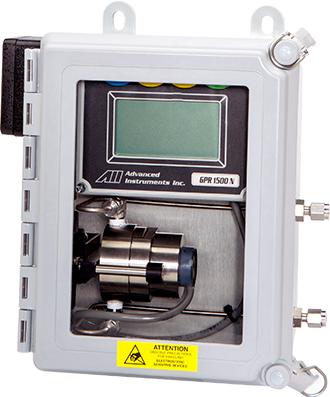

GPR-1500 A SERIES PPM OXYGEN ANALYZER
Giá bán: Liên hệ
Hãng sản xuất: Aii
Danh mục: Motor & Pump
Nhà cung cấp: anh nghi son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255Features an advanced galvanic trace PPM oxygen sensor capable of precisely measuring oxygen concentrations ranging from 100 PPB to 1% over a 24 month operating life with no periodic maintenance required, menu driven controls, and, two (2) field selectable alarm set points.
| Accuracy: | < 2% of FS range under constant conditions | Analysis: | 0-10 PPM, 0-100 PPM, 0-1000 PPM, 0-1%, 0-25% (air calibration only) FS ranges; auto or fixed ranging |
| Application: | Oxygen analysis in inert, hydrocarbon, helium, hydrogen, mixed and acid (CO2) gas streams |
Area Classification: | General purpose |
| Alarms: | Two user configurable alarms: magnetic coil relays rated 3A at 100 VAC, field programmable alarm time delays, alarm bypass for calibration and system fail alarm |
Calibration: | Air or certified span gas of O2balance N2approximating 80% of range above analysis range recommended |
| Compensation: | Barometric pressure and temperature | Connections: | 1/8″ compression tube fittings |
| Controls: | Water resistant keypad; menu driven range selection, calibration and system functions | Display: | Graphical LCD 2.75” x 1.375”; resolution 0.01 PPM; displays real time ambient temperature and pressure |
| Enclosure: | Fiberglass NEMA 4X, 14”x10”x5″, 8 lbs. | Flow Sensitivity: | None between 0.5-5 SCFH, 1-2 SCFH recommended |
| Linearity: | ±1% of full scale | Pressure: | Inlet – regulate to 5-30 psig to deliver 1-2 SCFH flow to transmitter; vent – atmospheric |
| Power: | 12-24 VDC non-loop power | Recovery Time: | 60 seconds in air to < 10 PPM in < 1 hour on N2purge |
| Response Time: | 90% of final reading in 10 seconds | Sample System: | None |
| Sensitivity: | < 0.5% of FS range | Sensor Model: | GPR-12-333 for inert gases; XLT-12-333 for gases containing > 0.5% CO2 |
| Sensor Life: | 24 months at 25ºC and 1 atm. | Signal Output: | 4-20mA |
| Operating Range: | Recommended -10 ºC to 45ºC (GPR sensor), -20ºto 45ºC (XLT sensor) |
Warranty: | 12 months analyzer; 12 months sensor |
