LASER SHAFT ALIGNMENT _ Thiết bị căn chỉnh Tâm trục bằng tia laser code : VLSAT™

Giá bán: Liên hệ

Hãng sản xuất: Vibro Laser VietNam

Danh mục: Thiết bị tự động hóa công nghiệp Việt Nam

Nhà cung cấp: Anh Nghi Sơn

Xuất sứ:

Gọi lại cho tôi

Liên hệ tư vấn

Ms. Như

support@ansgroup.asia

0373238670

live:.cid.5bbb32e4b8465e80

We are pleased to present the newest innovation in wireless portable laser shaft alignment technology, the VLSAT. VLSAT is available for Microsoft Windows®, Android® tablets and iOS® for iPad®.

The only 3 operating system shaft alignment product on the market VLSAT, from VIBRO-LASER  offers robust, repeatable, and relentlessly reliable features that give customers the choice in operating system combined with the most effective and accurate shaft alignment for the price.

DISPLAY

The ONLY 3 Operating System Laser Shaft Alignment System in the world VLSAT is available on Microsoft Windows®, Android® and iOS® for iPad®. You have a choice with VIBRO-LASER. Select your display tablet option from those we offer, or bring your own device that meets or exceeds our minimum requirements. VLSAT is ergonomically designed for the most rugged environments. This product offers an absolutely innovative, step-by-step, responsive interface with 3D-animations and wide touch screen which simplifies the alignment process and reduces the alignment times.

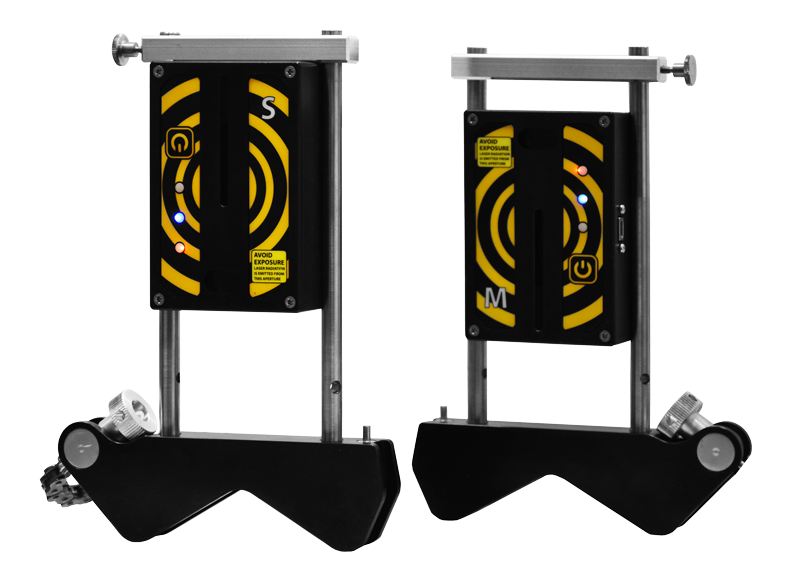

SENSOR UNITS

The VLSAT sensor units use the latest digital and Bluetooth® data processing technology. Eliminating pre-alignment and saving setup time is built in with the utilization of our exclusive 30mm CCD-detectors. This provides you with exact and stable measurement results and allows the system to be more interference-immune from the external factors (stray light, vibration, thermal growth etc.). Thanks to the compact and durable aluminum case of the sensor units, you can work  in the most confined space.



TECHNICAL PARAMETERS

Sealing IP 65 or IP67 Depending on Tablet/OS
Weight 250g –  1.03kg Depending on Tablet/OS
Dimensions Depends on Model
Display Color TFT with back light
Display size 8″ to 10″ diagonal widescreen
Display resolution 1280-800 up to 2048×1536 Depending on Model/OS
Operating Temp -14° F to +140° F (-20° C to +60° C) Depending on Model
Battery Life 8-15 hours depending on Model/OS
Storage Drive SSD 32GB+
Camera Front & Rear Facing Cameras
Resistance MIL-SPEC 810G (with case for iPad Model)



SENSOR UNIT

Material Anodized aluminium
Dimensions 90 mm x 60 mm x 32 mm
Laser radiation Diode laser with laser wavelength 635 nm, class II
Laser power < 1 mW
Measurement distance Up to 10m
Detector length  30 mm
Detector type Digital CCD detector
Detector resolution  0.001 mm
Measurement accuracy 0.3% ± 7 μm
Inclinometer  0.1°
Degree of protection IP65
Operating time 20 Hours
Bluetooth 4.0
Operating temperature  14° F to 140° F (-10° C to +60° C)



COMPLETE SET

  • Display unit (1pcs IF INCLUDED);
  • Sensor unit M (1pcs);
  • Sensor unit S (1pcs);
  • Complete v-bracket (2pcs);
  • Carring bag (1pcs);
  • Chain with lock (2pcs);
  • Display unit adapter (1pcs);
  • Sensor units adapter (1pcs);
  • Turn key (1pcs);
  • USB cable (2pcs);
  • Tape measure (1pcs);
  • Manual (1pcs);

VIBRO-LASER VLSATTM base software includes:

 Horizontal Shaft alignment

Vertical Shaft Alignment

 Units data

Softcheck

 Memory Manager

Data transfer to PC
