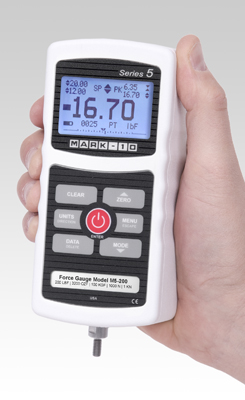

The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals.



Downloads Force Gauge Features Optional Equipment
Gallery   Display Indicators   Ordering Information
Included Items   Force Gauge Specifications



  Data Sheet   LabVIEW Serial Write / Read VI
User's Guide - Series 5 force gauges




gallery thumbnail gallery thumbnail





Conveniently stow all items in the included cushioned carrying case






  • Measures real time, average, and peak pull and push forces
  • 200 lbF (1,000 N) force capacity
  • Accuracy of ±0.1% of full scale
  • Sampling rate of 7,000 Hz
  • USB, RS-232, and analog outputs
  • High / low limit indicators, for pass / fail and minimum force testing
  • 1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR® Lite data collection software.
  • Force gauge is compatible with other Mark-10 grips and attachments






Accuracy:  ±0.1% of full scale
Sampling rate:    7,000 Hz
Power:   AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life:   Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Capacity x Resolution:    200 x 0.05 lbF, 3200 x 1 ozF, 100 x 0.02 kgF, 1000 x 0.2 N, 1 x 0.0002 kN
Outputs:   USB / RS-232: Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe overload:   200% of full scale (display shows “OVER” at 110% and above)
Warranty:   3 years (see individual statement for further details)


   MESUR™gauge software
Tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more.



Model Description
EKM5-200 Myometer kit


All models include 110V AC adapters. Add suffix ‘E’ for euro plug (220V),‘U’ for UK plug (220V), or 'A' for Australian plug (220V).
Example: EKM5-100E
