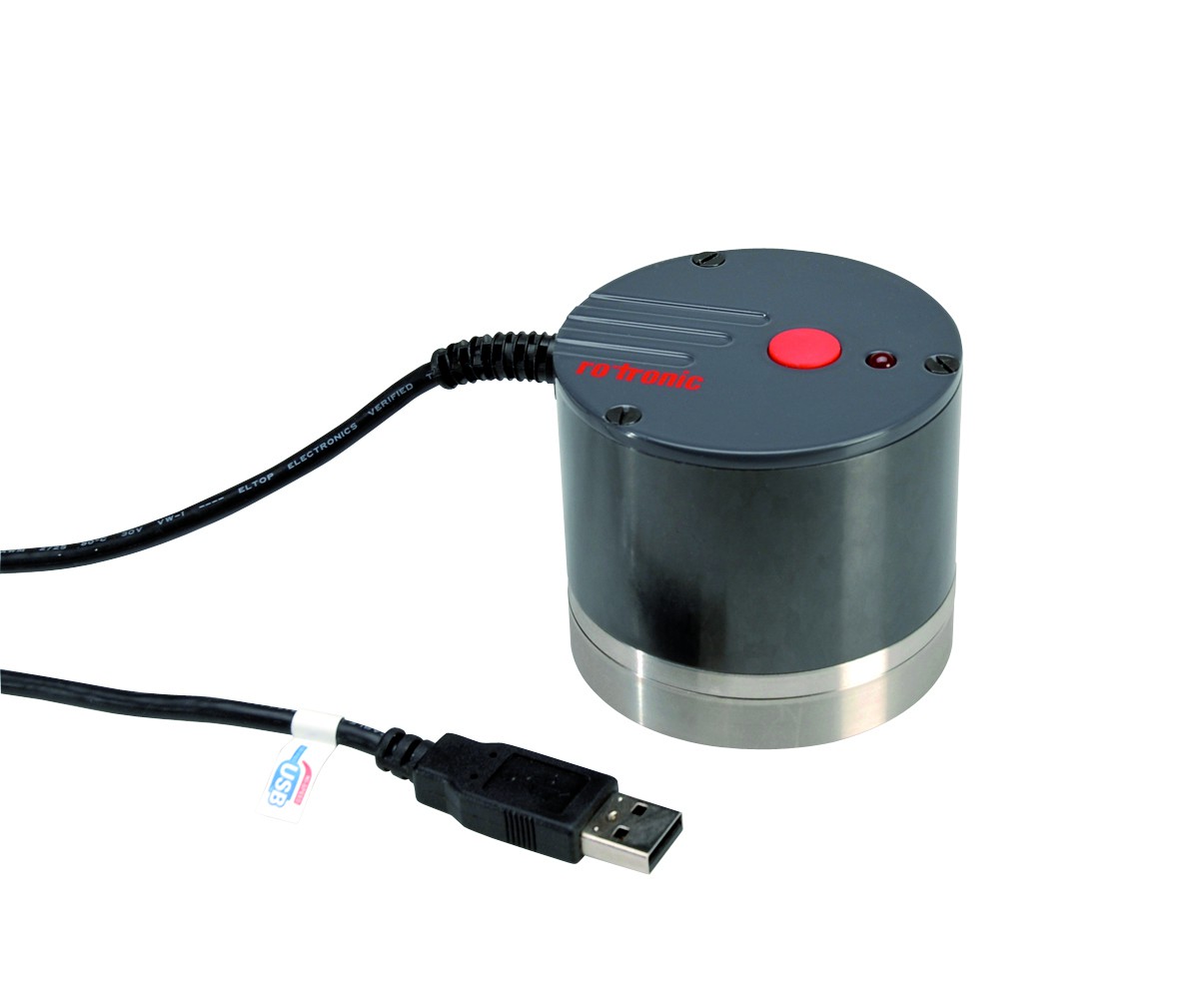

HC2-AW-USB
Giá bán: Liên hệ
Hãng sản xuất: Rotronic
Danh mục: PH - ORP - Oxygen
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255USB station probes
USB probes can be ordered as single probe or as a set including the HW4 software with Aw Quick function. The set offers all possibilities to measure water activity.
Features
• Complete set of probe and HW4 including Aw Quick function available
• Measurement range: 0.00…1.00 Aw (0…100 %RH), -40…85 °C (-40..185 °F)
• USB interface for direct connection to a PC (HC2-AW-USB)
| Probe type | Measurement probe with USB interface |
|---|---|
| Dimensions | Ø 68 x 60 mm |
| Weight | 600 g |
| For use with | Software HW4 |
| Range of application | -40…85 °C (-40…185 °F) / 0…100 %RH |
| Accuracy at 23 ±5 °C | ± 0.008 aw / 0.8 %rh / ±0.1 K |
| Power supply | Via USB interface |
| Long-term stability sensor | <1 %rh / year |
| Humidity sensor | HYGROMER® WA-1 / Pt-100, 1/3 DIN Class B |
| Temperature dependence | 0.001 K/K, 0.0002 aw/K |
| Filter type | Wire mesh filter with 20…25 μm pore size |
| Response time t 63 | <20 sec. |
| Psychrometric calculations | Dew or frost point |
| Connection | Via USB to PC, 3 m cable |
| Start-up time | 1,5 s |
| Measurement interval | 1 s |
| Communication interfaces | USB |
| Material | Stainless steel, aluminum |
| IP protection rating | IP20 |
| FDA / GAMP | FDA 21 CFR part 11 / GAMP5 |
| CE / EMC conform | EMC 2008/108/EG |
