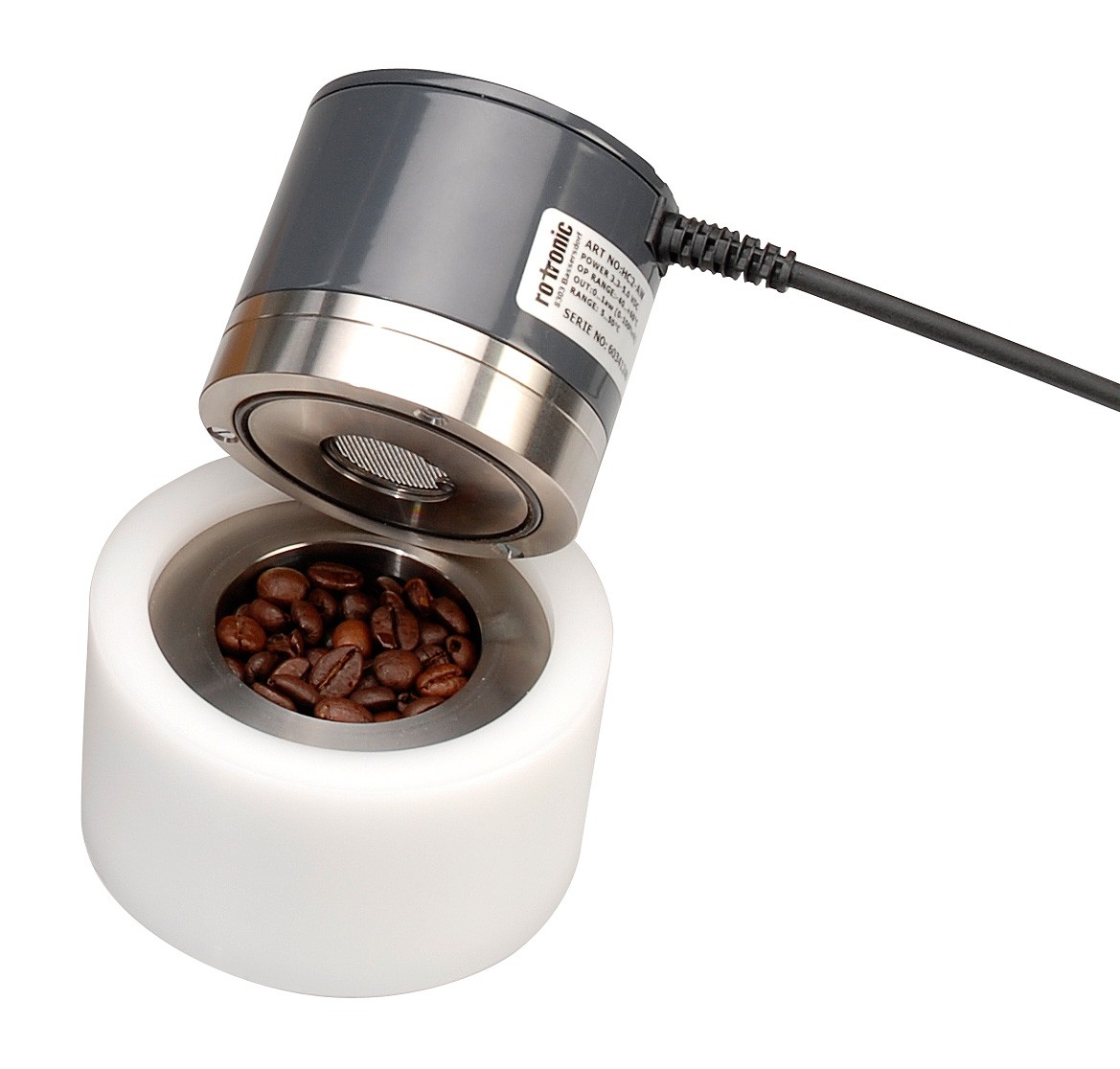

HC2-AW
Giá bán: Liên hệ
Hãng sản xuất: Rotronic
Danh mục: PH - ORP - Oxygen
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255Features
• Measurement range: 0…1 aw (0…100 %rh), -40…85 °C
• On/Off switch
• UART interface for direct connection to a PC
• Power supply via UART interface
• Adjusted at 23 °C and 10, 35, 80 %rh
| Probe type | Measurement probe with UART interface |
|---|---|
| Dimensions | ø 68 x 60 mm |
| For use with | HygroLab C1, HP23-AW-A |
| Range of application | -40…85 °C (-40…185 °F) / 0…100 %RH |
| Accuracy at 23 ±5 °C | ± 0.008 aw / 0.8 %rh / ±0.1 K |
| Power supply | Via display instruments |
| Long-term stability sensor | <1 %rh / year |
| Humidity sensor | HYGROMER® WA-1 / Pt-100, 1/3 DIN Class B |
| Temperature dependence | 0.001 K/K, 0.0002 aw/K |
| Filter cartridge | Wire mesh filter with 20…25 μm pore size |
| Response time t 63 | <20 sec. |
| Psychrometric calculations | Dew or frost point |
| Start-up time | 1,5 s |
| Measurement interval | 1 s |
| Aw-quick mode | Yes |
| Communication interfaces | UART |
| Material | Stainless steel, aluminum |
| IP protection rating | IP20 |
| FDA / GAMP | FDA 21 CFR part 11 / GAMP5 |
| CE / EMC conform | EMC 2008/108/EG |
