Product characteristics

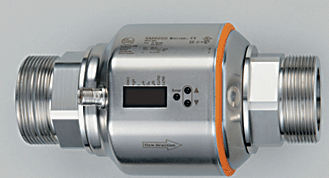

Magnetic-inductive flow meter
Connector
Process connection: G2 flat seal
connection to pipe by means of an adapter
Function programmable
Totaliser function
Empty pipe detection
2 outputs
OUT1 = flow monitoring (binary), flow rate meter (pulse), preset meter (binary)
OUT2 = flow monitoring or temperature monitoring (analogue or binary)
Input for counter reset
4-digit alphanumeric display
Measuring range
5...600 l/min
 Application
Application   Conductive liquids
(conductivity:>= 20 µS/cm / viscosity: < 70 mm²/s at 40 °C)
Pressure rating [bar]   16
Medium temperature [°C]   -10...70
 Electrical data
Electrical design   DC PNP/NPN
Operating voltage [V]   18...32 DC ¹)
Current consumption [mA]   < 150
Insulation resistance [MΩ]   > 100 (500 V DC)
Protection class   III
Reverse polarity protection   yes
 Outputs
Output function   OUT1: normally open / normally closed programmable or pulse or frequency or empty pipe detection or IO-Link
OUT2: normally open / normally closed programmable or analogue (4...20 mA; 0...10 V, scalable) or empty pipe detection
Current rating [mA]   2 x 250
Voltage drop [V]   < 2
Short-circuit protection   pulsed
Overload protection   yes
Analogue output   4...20 mA; 0...10 V
Max. load [Ω]   500 (4...20 mA)
Min. load [Ω]   2000 (0...10 V)
Pulse output   flow rate meter
Frequency range [Hz]   0.1...10000
 Measuring / setting range
Empty pipe detection   normally closed / open
Flow monitoring
Measuring range   5...600 l/min 0.3...36 m³/h
Display range   -720...720 l/min -43.2...43.2 m³/h
Resolution   0.5 l/min 0.02 m³/h
Set point, SP   8...600 l/min 0.5...36 m³/h
Reset point, rP   5...597 l/min 0.3...35.8 m³/h
Analogue start point, ASP   0...480 l/min 0...28.8 m³/h
Analogue end point, AEP   120...600 l/min 7.2...36 m³/h
Flow end point, FEP   20...600 l/min; 1.2...36 m³/h
Low flow cut-off, LFC   5...15 l/min 0.3…0.9 m³/h
in steps of   0.5 l/min 0.02 m³/h
Frequency end point, FrEP   0.01...10 kHz
in steps of   10 Hz
Measuring dynamics   1:120
Volumetric flow quantity monitoring
Measuring range [l...m³]   0.0…9999 x 10³
Display range [l...m³]   0.0…9999 x 10³
Set point, SP [l...m³]   0.0…9999 x 10³
Pulse value   0.1 l...600 x 10³ m³
in steps of   0.1 l
Pulse length [s]   0.008...2
Temperature monitoring
Measuring range [°C]   -20...80
Display range [°C]   -40...100
Resolution [°C]   0.2
Set point, SP [°C]   -19.2...80.0
Reset point, rP [°C]   -19.6...79.6
Analogue start point, ASP [°C]   -20...60
Analogue end point, AEP [°C]   0...80
in steps of [°C]   0.2
 Accuracy / deviations
Flow monitoring
Accuracy   ± (0.8% MW + 0.5% MEW) ²)
Repeatability   ± 0.2% MEW
Pressure loss (dP) / flow rate (Q)
Temperature monitoring
Accuracy [K]   ± 1 (bei 25 °C, Q > 15 l/min)
Temperature drift   ± 0.0333 °C / K
 Reaction times
Power-on delay time [s]   5
Flow monitoring
Start-up delay [s]   0...50
Response time [s]   < 0.35 (dAP = 0)
Damping, dAP [s]   0...5
Temperature monitoring
Response time [s]   T09 = 3 (Q > 15 l/min)
 Software / programming
Programming options   Hysteresis / window; NO / NC; output logic; current / voltage / frequency / pulse output; start-up delay; display can be deactivated; display unit; empty pipe detection
 Interfaces
IO-Link Device
Transfer type   COM2 (38.4 kBaud)
IO-Link revision   1.1
SDCI standard   IEC 61131-9 CDV
IO-Link Device ID   389d / 00 01 85h
Profiles   Smart Sensor: Process Data Variable; Device Identification
SIO mode   yes
Required master port type   A
Process data analogue   3
Process data binary   2
Min. process cycle time [ms]   5
 Environment
Ambient temperature [°C]   -10...60
Storage temperature [°C]   -25...80
Protection   IP 65 / IP 67
 Tests / approvals
Pressure equipment directive   Article 3, section 3 - sound engineering practice
EMC
DIN EN 61000-4-2 ESD:  4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated:  10 V/m
DIN EN 61000-4-4 Burst:  2 kV
DIN EN 61000-4-5 Surge:  1 kV
DIN EN 61000-4-6 HF conducted:  10 V
Shock resistance
DIN EN 60068-2-27 20 g (11 ms)
Vibration resistance
DIN EN 60068-2-6 5 g (10...2000 Hz)
MTTF [Years]   78
 Mechanical data
Process connection   G2 flat seal
Materials (wetted parts)   stainless steel 316L / 1.4404; stainless steel 316Ti / 1.4571; PEEK (polyether ether ketone); Hastelloy C-4 (2.4610); Centellen; FKM
Housing materials   stainless steel 316L / 1.4404; stainless steel 316Ti / 1.4571; PEI; FKM; PBT-GF 20; elastolan
Weight [kg]   3.071
 Displays / operating elements
Display
Display unit  6 x LED green (l/min, m³/h, l, m³, 10³, °C)
Switching status  2 x LED yellow
Measured values  4-digit alphanumeric display
Programming  4-digit alphanumeric display
 Electrical connection
Connection   M12 connector; Gold-plated contacts
Wiring
Core colours
BK black
BN brown
BU blue
WH white
Colours to DIN EN 60947-5-6
------------------------
OUT1: 6 options:
switching output empty pipe detection
switching output flow rate monitoring
frequency output flow rate monitoring
pulse output quantity meter
signal output preset counter
IO-Link
OUT2: 6 options:
switching output empty pipe detection
switching output flow rate monitoring
switching output temperature monitoring
analogue output flow rate
analogue output temperature
Input for counter reset
 Accessories
Accessories (included)   2 x packing washer (Centellen); Label
 Remarks
Remarks
¹) to DIN EN 50178, SELV, PELV
²) Q > 15l/min, medium and ambient temperature +22 °C ± 4 K
MW = measured value
MEW = final value of the measuring range
Pack quantity [piece]   1
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen  —  We reserve the right to make technical alterations without prior notice.  —  GB  —  SM2000  —  12.11.2014
