| Product characteristics |

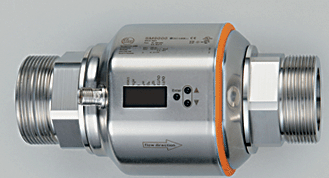

| Magnetic-inductive flow meter |
| Connector |
| Process connection: G2 flat seal |
| connection to pipe by means of an adapter |
| Empty pipe detection |
| 2 outputs |
OUT1 = analogue signal temperature
OUT2 = analogue signal flow |
| 4-digit alphanumeric display |
| Display units: l/min, m³/h, gpm, gph, °C, °F |
| Measuring range |
| 5...600 l/min (1.3...158.5 gpm) |
| Application |
| Application |
|
Conductive liquids
(conductivity:>= 20 µS/cm / viscosity: < 70 mm²/s at 40 °C) |
| Pressure rating [bar] |
|
16 |
| Medium temperature [°C / °F] |
|
-10...70 / 14...158 |
| Electrical data |
| Electrical design |
|
DC |
| Operating voltage [V] |
|
18...32 DC ¹) |
| Current consumption [mA] |
|
< 150 |
| Insulation resistance [MΩ] |
|
> 100 (500 V DC) |
| Protection class |
|
III |
| Reverse polarity protection |
|
yes |
| Outputs |
| Output function |
|
OUT1: analogue (4...20 mA) or IO-Link
OUT2: Analogue (4...20 mA) |
| Analogue output |
|
4...20 mA; ≤ 22 mA |
| Max. load [Ω] |
|
500 |
| Measuring / setting range |
| Flow monitoring |
| Measuring range |
|
5...600 l/min |
0.3...36 m³/h |
80...9510 gph |
1.3...158.5 gpm |
| Display range |
|
-720...720 l/min |
-43.2...43.2 m³/h |
-11410...11410 gph |
-190.2...190.2 gpm |
| Resolution |
|
0.5 l/min |
0.02 m³/h |
5 gph |
0.1 gpm |
| Analogue start point, ASP |
|
0...480 l/min |
0...28.8 m³/h |
0...7610 gph |
0...126.8 gpm |
| Analogue end point, AEP |
|
120...600 l/min |
7.2...36 m³/h |
1900...9510 gph |
31.7...158.5 gpm |
| Low flow cut-off, LFC |
|
5...15 l/min |
0.3...0.9 m³/h |
80...240 gph |
1.3…4 gpm |
| in steps of |
|
0.5 l/min |
0.02 m³/h |
5 gph |
0.1 gpm |
| Measuring dynamics |
|
1:120 |
| Temperature monitoring |
| Measuring range [°C / °F] |
|
-20...80 / -4...176 |
| Display range [°C / °F] |
|
-40...100 / -40...212 |
| Resolution [°C / °F] |
|
0.2 / 0.5 |
| Analogue start point, ASP [°C / °F] |
|
-20...60 / -4...140 |
| Analogue end point, AEP [°C / °F] |
|
0...80 / 32...176 |
| in steps of [°C / °F] |
|
0.2 / 0.5 |
| Accuracy / deviations |
| Flow monitoring |
| Accuracy [% of the final value] |
|
± (0.8% MW + 0.5% MEW) ³) |
| Repeatability |
|
± 0.2% MEW |
| Pressure loss (dP) / flow rate (Q) |
|
 |
| Temperature monitoring |
| Accuracy [K] |
|
± 1 (25 °C; Q > 15 l/min) / ± 1 (77 °F; Q > 4 gpm) |
| Temperature drift |
|
± 0.0333 °C / K; ± 0.0599 °F / K |
| Reaction times |
| Power-on delay time [s] |
|
5 |
| Flow monitoring |
| Response time [s] |
|
< 0.35 (dAP = 0) |
| Damping, dAP [s] |
|
0...5 |
| Temperature monitoring |
| Response time [s] |
|
T09 = 3 (Q > 15 l/min) / T09 = 3 (Q > 4 gpm) |
| Software / programming |
| Programming options |
|
Display can be deactivated; Display unit; Empty pipe detection |
| Interfaces |
| IO-Link Device |
| Transfer type |
|
COM2 (38.4 kBaud) |
| IO-Link revision |
|
1.1 |
| SDCI standard |
|
IEC 61131-9 FDIS |
| IO-Link Device ID |
|
379 d / 00 01 7B h |
| Profiles |
|
Smart Sensor: Process Data Variable; Device Identification |
| SIO mode |
|
no |
| Required master port type |
|
A |
| Process data analogue |
|
3 |
| Process data binary |
|
2 |
| Min. process cycle time [ms] |
|
5 |
| Environment |
| Ambient temperature [°C / °F] |
|
-10...60 / 14...140 |
| Storage temperature [°C / °F] |
|
-25...80 / -13...176 |
| Protection |
|
IP 65 / IP 67 |
| Tests / approvals |
| Pressure equipment directive |
|
Article 3, section 3 - sound engineering practice |
| EMC |
|
DIN EN 60947-5-9 |
| Shock resistance |
|
| DIN EN 60068-2-27 |
20 g (11 ms) |
|
| Vibration resistance |
|
| DIN EN 60068-2-6 |
5 g (10...2000 Hz) |
|
| MTTF [Years] |
|
78 |
| Mechanical data |
| Process connection |
|
G2 flat seal |
| Materials (wetted parts) |
|
stainless steel 316L / 1.4404; stainless steel 316Ti / 1.4571; PEEK (polyether ether ketone); Hastelloy C-4 (2.4610); Centellen; FKM |
| Housing materials |
|
stainless steel 316L / 1.4404; stainless steel 316Ti / 1.4571; PEI; FKM; PBT-GF 20; elastolan |
| Weight [kg] |
|
3.065 |
| Displays / operating elements |
| Display |
|
| Display unit |
6 x LED green (l/min, m³/h, gpm, gph, °C, °F) |
| Function display |
1 x LED yellow (10³) |
| Measured values |
4-digit alphanumeric display |
| Programming |
4-digit alphanumeric display |
|
| Electrical connection |
| Connection |
|
M12 connector; Gold-plated contacts |
Wiring
| Core colours |
| BK |
black |
| BN |
brown |
| BU |
blue |
| WH |
white |
|
 |
 |
| Colours to DIN EN 60947-5-6 |
| ------------------------ |
| OUT1: |
| Temperature monitoring |
| IO-Link ²) |
| OUT2: |
| Flow monitoring |
|
|
|
| Accessories |
| Accessories (included) |
|
2 x packing washer (Centellen); Label |
| Remarks |
| Remarks |
|
| ¹) to DIN EN 50178, SELV, PELV |
| ²) IO-Link communication must be activated in the menu. |
| ³) Q > 15l/min, medium and ambient temperature +22 °C ± 4K (+72 °F ± 7 °F) |
| MW = measured value |
| MEW = final value of the measuring range |
|
| Pack quantity [piece] |
|
1 |
| ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — GB — SM2004 — 17.07.2015 |
