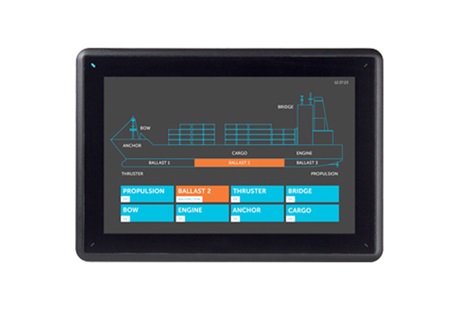

091147225515.4'' graphic touch marine HMI with iX software,high brightness display
- 15.4" TFT-LCD touch screen
- 1280 × 800 (16:10)
Facts
General description
| Article number | 640003501 |
| Part status | Active |
Mechanical
| Mechanical size | 410 x 286 x 83 mm |
| Touch type | Resistive type |
| Weight | 4.5 kg |
| Housing material | Powder coated aluminum |
Power
| Input voltage | +24 VDC (18 - 32 VDC) |
| Power consumtion | 28 W |
| Input fuse | Internal DC fuse, 3.15A slow |
Display
| Size diagonal | 15.0 inch |
| Resolution | 1280 X 800 pixels |
| Backlight | LED backlight |
| Backlight life time | 30,000 hrs |
| Backlight brightness | 1000 cd/m2 |
| Backlight dimming | Marine Optimized for bridge |
| Display type | TFT LCD |
Communication serial
| Number of serial ports | 2 Port 9pin DSUB |
Ethernet communication
| Number of ethernet ports | 2 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
| Ethernet port 2 | 1x10/100/1000 Base-T (shielded RJ45) |
Environmental
| Operating temperature | -15 to 55 °C |
| Storage temperature | -20 to + 70 °C |
| Shock | 10G 11ms half sine |
| Vibration | 0,7G RMS |
| Sealing front | IP65 |
| Sealing back | IP20 |
| Humidity | <85 % non-condensed |
