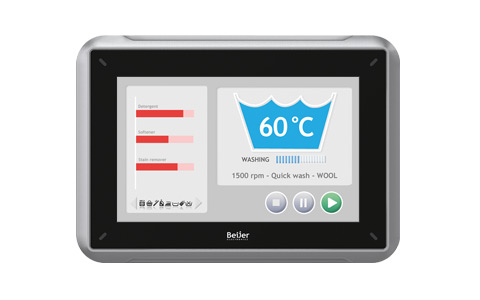

iX T7A SoftControl
Giá bán: Liên hệ
Hãng sản xuất: Beijerelectronics
Danh mục: Inverter
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255iX T7A SoftControl
| General Description | |
| Article number | 630001802 |
| Part status | Active |
| HMI development software | iX Developer 1.31 or above |
| System Info | |
| RAM | 128MB |
| CPU | 400MHz ARM9 |
| Application storage | 80 MB |
| SoftControl | |
| Persistent retain memory | 16 Kbyte |
| SoftControl development software | CODESYS 3.5 |
| Remote I/O bus | Modbus RTU |
| Display | |
| Type | TFT-LCD |
| Size | 7" 800 x 480 pixels |
| Backlight | LED backlight |
| Backlight lifetime | 20000 h |
| Brightness | 350 cd/m2 |
| Interaction | |
| External control | USB |
| Front LED | Red/ Blue software programmable |
| Touch screen type | Resistive touch |
| Power | |
| Power consumption at rated voltage | 6 W |
| Voltage | +24 V DC (18-32 V DC) |
| Fuse | Internal DC fuse, 2.0 AT, 5 x 20mm |
| Mechanical | |
| Size | 204 x 143 x 43 mm |
| Weight | 0,8 Kg |
| Housing material | Powder-coated aluminum |
| Serial Communication | |
| Com 1 | RS232 (RTS/CTS) |
| Com 2 | RS422/ RS485 |
| Com 3 | RS232 |
| Com 4 | RS422 (RTS)/ RS485 |
| Ethernet | |
| Ethernet 1 | 1 x 10/100 Mbit/s (shielded RJ 45) |
| Ethernet 2 | N/A |
| Expansion | |
| USB | 1xUSB Host 2.0, max output current 200mA |
| Memory expansion | 1xSD card |
| iX Field buss expansion | yes |
| Certifications | |
| UL | UL508 *pending |
| DNV | DNV EMC class A |
| CE | Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity. |
| Environmental | |
| Humidity | <85% non-condensed |
| Operating temperature | -10° to +60°C |
| Storage temperature | -20° to +70°C |
| Sealing - front panel | IP 65 |
