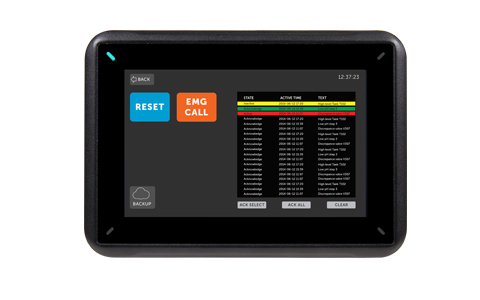

iX T7AM
Giá bán: Liên hệ
Hãng sản xuất: Beijerelectronics
Danh mục: Motor & Pump
Nhà cung cấp: Anh nghi son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255iX T7AM
| General Description | |
| Article number | 630002502 |
| Part status | Active |
| HMI development software | iX Developer 2.0 SP1 + T7AM add-on |
| System Info | |
| RAM | 128 MB |
| CPU | ARM9 400MHz |
| Application storage | 80 MB |
| Display | |
| Type | TFT LCD, 800 x 480 pixels, 64K colors |
| Size | 7 inch. |
| Backlight | LED (Dimming to 0 cd/m2) |
| Backlight lifetime | 50,000 hrs |
| Brightness | 500 cd/m2 |
| Interaction | |
| External control | N/A |
| Front LED | 1 x blue/ red software programmable |
| Touch screen type | Resistive Type |
| Power | |
| Power consumption at rated voltage | 6.0 W |
| Voltage | +24 VDC (18 - 32 VDC) |
| Fuse | Internal DC fuse, 2.0 AT, 5 x 20mm |
| Mechanical | |
| Size | 204 x 143 x 52.2 mm |
| Weight | 0.7 kg |
| Housing material | Powder coated Aluminum |
| Serial Communication | |
| Com 1 | RS232 (RTS/CTS) |
| Com 2 | RS422/485 |
| Com 3 | RS232 |
| Com 4 | RS422 (RTS)/ RS485 |
| Ethernet | |
| Ethernet 1 | 1 x 10/100 Base-T (shielded RJ 45) |
| Ethernet 2 | N/A |
| Expansion | |
| USB | 1 × USB 2.0, max. 200 mA |
| Memory expansion | SD |
| iX Field buss expansion | Yes |
| Certifications | |
| UL | UL508 |
| DNV | DNV (A-13497) |
| GL | GL (60 108 - 13 HH) |
| LR | LR (13/20057) |
| RS | Pending |
| BV | BV (AP4487) |
| CE | Noise tested according to EN 55022: 2010, AS/NZS CISPR 22: 2009 emission and EN 55024: 2010 immunity. |
| Environmental | |
| Sealing - back panel | IP20 |
| Humidity | <85 % non-condensed |
| Storage temperature | -20 to + 70 °C |
| Operating temperature | -15 to + 55 °C |
| Sealing - front panel | IP65 |
The iX T7AM is available with the following option:
Cix CAN
With the optional CiX CAN module you can interface the panel with controllers that use CAN as their communication channel.
