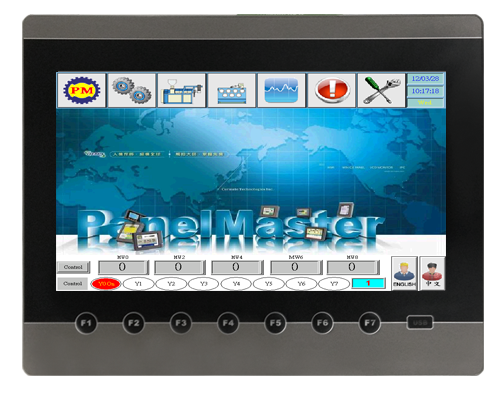

PK100-WFT
Giá bán: Liên hệ
Hãng sản xuất: Cermate
Danh mục: Valve-Cylinder
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255| Model Name | PK100-WFT | ||||
| Sub-Models | 20 / 40 | ||||
| Display | Size | 10.1" | |||
| Max. Resolution | 1024*600 | ||||
| Type | TFT LCD with LED Backlight | ||||
| Max. Colors | 16-bit | ||||
| Backlight Life (hr) | 20,000 | ||||
| Display Contrast | 500:1 | ||||
| Luminance (cd/m2) | 150 | ||||
| Touch Panel | 4-wire Analog Touch Panel | ||||
| CPU | RISC ARM9 32Bit | ||||
| Backup SRAM | 128KB (optional: 1MB) | ||||
| Working Memory | 32MB | ||||
| Built-in Storage Memory | 8MB+128MB (NAND Flash) | ||||
| Real-Time Clock (RTC) | YES | ||||
| Communication Interface | Micro SD Slot | N/A | |||
| USB Client | YES (USB 1.1) | ||||
| USB Host | YES (USB 1.1) | ||||
| Serial (Com1) | RS232/422/485 | ||||
| Serial (Com2) | N/A | ||||
| Serial (Com3) | RS232 (optional: RS485) | ||||
| Serial (Com4) | N/A | ||||
| Ethernet | Sub-Model 40: YES | ||||
| Front Function Keys | 7-keys | ||||
| Audio out (optional) | N/A | ||||
| Video in (optional) | N/A | ||||
| Front USB Host Port | N/A | ||||
| Power | Input | 24VDC±10% Isolated | |||
| Consumption | 20W | ||||
| Environment | Operating Temperature | 0°C~50°C | |||
| Relative Humidity | 10%~90% | ||||
| Shock (operation) | 10 ~ 55Hz (X,Y,Z direction, 1G, 30 Mins shock testing) | ||||
| EMI | FCC Part 15 A Class A | ||||
| CE | EN61000-6-2 ; EN61000-6-4 | ||||
| UL Certification | N/A | ||||
| Ingress Protection | IP65 | ||||
| Cooling | Natural Cooling | ||||
| Dimension WxHxD (mm) | 270.1 x 212.1 x 42.5 | ||||
| Cutout Dimension WxH (mm) | 259.5 x 201.5 | ||||
| Net Weight (kg) | 1.1 | ||||
