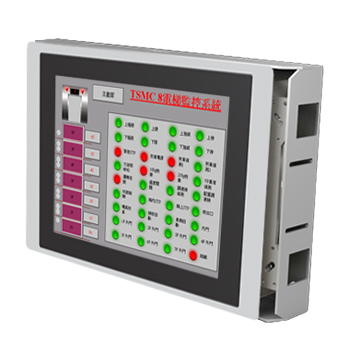

WX121
Giá bán: Liên hệ
Hãng sản xuất: Cermate
Danh mục: Valve-Cylinder
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255| Sub-models | 4 / 6 | |
| Display | Size | 12.1" diagonal |
| Max. Resolution | 1024*768 | |
| Type | TFT LCD with LED Backlight | |
| Max. Colors | 16-bit/24-bit (Software selectable) | |
| Backlight Life (hr) | 50,000 | |
| Display Contrast | 700 | |
| Luminance (cd/m2) | 500 | |
| Touch Panel | 5-wire Analog Resistive Type | |
| CPU | RISC ARM11 800MHz | |
| Backup SRAM | 1MB | |
| Working Memory | 256MB | |
| Built-in Storage Memory | 1GB | |
| Real-Time Clock (RTC) | YES | |
| Communication Interface | Micro SD Slot | YES |
| USB Client | YES (2.0) | |
| USB Host | YES (1.1) | |
| Serial (Com1) | RS232/422/485 | |
| Serial (Com2) | A-RS422/485 B-RS232/485 C-RS232 with RTS&CTS | |
| Serial (Com3) | RS232 (optional: RS485) | |
| Serial (Com4) | RS422/485 (Isolated) | |
| Ethernet | YES | |
| Front Function Keys | N/A | |
| Audio out (optional) | 6: YES | |
| Video in (optional) | 6: YES (Video Module Depth= 20mm) | |
| Front USB Host Port | N/A | |
| Power | Supply Voltage | 24VDC±10% Isolated |
| Consumption | 20W | |
| Environment | Operating Temperature | -20°C~60°C(-25°C~70°C optional with AL front, CE certified only) |
| Relative Humidity | 10%~90% | |
| Shock (operation) | 10 ~ 55Hz(X,Y,Z direction, 1G, 30 minutes shock test) | |
| EMI | FCC Part 15 Class A | |
| CE | EN61000-6-2, EN61000-6-4 | |
| UL Certification | YES | |
| Ingress Protection | IP66 | |
