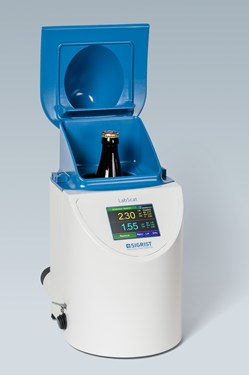

LabScat 2 Dual-Angle Lab Turbidimeter
Giá bán: Liên hệ
Hãng sản xuất: Photometer VietNam
Danh mục: Turbidimeters (liquids)
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
0911472255- Compact design
- High measuring span
- Precise and reliable measurement also at 0 °C / 32 °F
- Colour compensated dual-angle measurement according to EBC- / MEBAK - Standard
- Bottle rotation and water bath to minimize disturbing influences
- Monitoring of the water bath quality
- Integrated control panel with colour touch screen display
- Quick adjustment with secondary standard
- Easy maintenance, no tools required
The LabScat monitors turbidity in liquids, using a single light source to detect transmitted light and scattered light at 90° and 25°. This allows colour-compensated dual-angle measurement according to MEBAK and EBC standard, in bottles and glass cuvettes. Bottle rotation and water-bath minimize disturbing influences, the quality of the water bath is monitored. Operation is done via a colour touchscreen. No tools are required for routine maintenance. Calibration check is simply performed with a calibration unit with a glass reference, which is part of the scope of supply. Sample ID and handling measuring data are performed using digital interfaces (USB, Ethernet with web browser).
|
Measuring principle |
Scattered light 90°/25° |
|
0 .. 200 (500 with cuvette) EBC 0 .. 13,800 (34,500 with cuvette) ASBC |
|
|
LED 650 nm |
|
|
Resolution |
0.001 EBC / 0.07 ASBC |
|
Measuring time |
12 s |
|
Water bath temperature |
0 .. 40 °C (0 .. 104 °F) |
|
Recalibration |
Secondary solid reference |
|
Ambient temperature |
0 .. 40 °C (0 .. 104 °F) |
|
Humidity |
0 .. 99% RH |
|
Supply voltage |
12 VDC with separate power supply |
|
Power input |
10 W (max.) |
|
Data transfer |
Web browser, USB |
|
Options |
Temperature controlled measurement |
|
Weight |
5 kg |
|
Display |
1/4 VGA, 3.5“ |
|
Operation |
Touchscreen |
|
Interfaces |
Ethernet, USB |
|
Sample identification |
Web browser |
|
Bottle dimensions |
Ø 50 .. 88 mm Height up to 330 mm |
| Industry | Measuring Point |
|---|---|
|
Brewing Industry |
Turbidity in the Brewery Laboratory |
|
Chemical / Pharmaceutical Industry |
Turbidity in Silicone Oil |
|
Drinking Water Treatment |
Turbidity in Treated Water |
|
Food Industry |
Concentration of Wax in Sunflower Oil |
|
Machine and Metal Industry |
Turbidity in Treated Water |
|
Power Plants |
Turbidity in Treated Water |
|
Pulp / Paper Industry |
Turbidity in Treated Water |
|
Soft Drink / Fruit Juice Industry |
Turbidity in the Spirits, Wine & Softdrinks Laboratory |
|
Spirits Industry |
Turbidity in the Spirits, Wine & Softdrinks Laboratory |
|
Waste Water Treatment |
Turbidity in Treated Water |
|
Wine Industry |
Turbidity in the Spirits, Wine & Softdrinks Laboratory |
