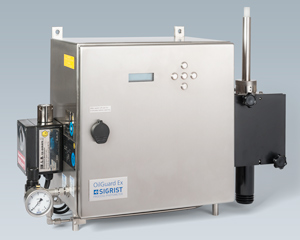

OilGuard Ex M Oil Trace Monitor for oil discharge monitoring
Giá bán: Liên hệ
Hãng sản xuất: Photometer VietNam
Danh mục: Fluorescencemeters
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
0911472255- Ex protection class II 2G Ex px IIC T4 (ex zone 1)
- Complies with IMO resolution MEPC.107(49)
- Non-contact flow cell avoids window soiling
- Low influence of suspended solids due to fluorescence principle
- Easy adjustment with secondary standard
- Alarm contact 15 ppm
The OilGuard works on the fluorescence principle. The design uses a free-fall measuring system that eliminates contact between the sample and the flow cell. Adoptions to various types of oil are carried out by means of calibration curves, a control glass makes it easy to check or recalibrate the instrument. A pressurized-enclosure version is offered for areas requiring explosion protection and the version Ex M complies with the IMO standard MEPC.107(49).
|
Measuring principle |
Fluorescence measurement |
|
±0.5 ppm |
|
|
Reaction time |
max. 2 s (step response → limit switch) |
|
Enclosure |
Stainless steel (DIN 1.4301 / AISI?? 304) |
|
Protection class |
Ex II 2G Ex px IIC T4 (zone 1) |
|
Protection |
IP65 |
|
Flow cell material |
PVDF |
|
Sample flow rate |
5 .. 7 l/min |
|
Calibration |
according to IMO resolution MEPC.107(49) |
|
Supply voltage |
230 V; 50/60 Hz |
|
Power input |
150 VA |
|
Dimensions |
680 x 536 x 312 mm |
|
Weight |
about 37 kg |
|
Sample temperature |
max. 95 °C |
|
Sample pressure |
Pressureless |
|
Interfaces |
Profibus DP (optional) |
|
Purge air |
6 l/min |
|
Ambient environment |
-20 .. + 40 °C (optional max. +50 °C) |
|
Maximum service altitude |
3,000 m above sea level |
|
Analog outputs |
0/4..20 mA (max. 600Ω/max. 24V) |
|
Warm-up time |
min. 2 h |
