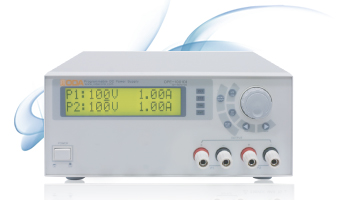

OPE-DI Series

Giá bán: Liên hệ

Hãng sản xuất: ODA Korea

Danh mục: Power supply

Nhà cung cấp: Anh Nghi Son

Xuất sứ:

Bảo hành: 12

Gọi lại cho tôi

Liên hệ tư vấn

Hotline

support@ansgroup.asia

0911472255

Declaration of commercialization of the programmable DC Power Supply with the best technology!
Supply of Programmable DC Power Supply at low price
CV / CC mode operation
OUTPUT ON/OFF function provided
Able to store and recall up to five operation states (voltage, electric current)
19¡±Half x 2U slim size (less than 300 W)
RS-232C attached by default (RS-485 Option)
Specification
          Voltage
Current		 10A 20A 30A 50A 100A 200A 500A
9V OPE-910DI OPE-920DI OPE-930DI OPE-950DI OPE-9100DI OPE-9200DI OPE-9500DI
18V OPE-1810DI OPE-1820DI OPE-1830DI OPE-1850DI OPE-18100DI OPE-18200DI OPE-18500DI
30V OPE-3010DI OPE-3020DI OPE-3030DI OPE-3050DI OPE-30100DI OPE-30200DI OPE-30500DI
50V OPE-5010DI OPE-5020DI OPE-5030DI OPE-5050DI OPE-50100DI OPE-50200DI OPE-50500DI
120V OPE-10010DI OPE-10020DI OPE-10030DI OPE-10050DI OPE-100100DI OPE-100200DI OPE-100500DI
200V OPE-20010DI OPE-20020DI OPE-20030DI OPE-20050DI OPE-200100DI OPE-200200DI OPE-200500DI
250V OPE-25010DI OPE-25020DI OPE-25030DI OPE-25050DI OPE-250100DI OPE-250200DI OPE-250500DI
300V OPE-30010DI OPE-30020DI OPE-30030DI OPE-30050DI OPE-300100DI OPE-300200DI OPE-300500DI
500V OPE-50010DI OPE-50020DI OPE-50030DI OPE-50050DI OPE-500100DI OPE-500200DI OPE-500500DI
¡Ø Inquire our company or our distributor for the products besides the above mentioned model.



                 Parameter
Model		 OPE-3010S OPE-3050S OPE-30100S OPE-50200S
Output rating 0~30V, 0~10A  2CH 0~30V, 0~50A  2CH 0~30V, 0~100A  2CH 0~50V, 0~200A 2CH
Resolution
 Programming/Readback ¡Â 7.5mV / ¡Â 4mA ¡Â 7.5mV / ¡Â 15mA ¡Â 7.5mV / ¡Â 25mA ¡Â 15mV / ¡Â 50mA
Display Meter 100mV / 100mA 100mV / 100mA 100mV / 1A 100mV / 1A
Programming Accuracy (@25¡É ±5¡É)±(%of output + offset)
Voltage 0.2% + 200mV 0.2% + 200mV 0.2% + 200mV 0.2% + 300mV
Current 0.2% + 50mA 0.2% + 250mA 0.2% + 500mA 0.2% + 1A
Read-back Accuracy (@25¡É ±5¡É)±(%of output + offset)
Voltage 0.2% + 200mV 0.2% + 200mV 0.2% + 200mV 0.2% + 300mV
Current 0.2% + 50mA 0.2% + 250mA 0.2% + 500mA 0.2% + 1A
Ripple & Noise ¡Â 2mVp-p, ¡Â 3mArms ¡Â 3mVp-p, ¡Â 10mArms ¡Â 10mVp-p, ¡Â 10mArms ¡Â 10mVp-p, ¡Â 20mArms
Load Regulation 0.01%+4mV, 0.01%+1mA 0.01%+8mV, 0.01%+5mA 0.01%+30mV, 0.01%+10mA 0.01%+50mV, 0.01%+10mA
Line Regulation 0.01%+4mV, 0.01%+1mA 0.01%+8mV, 0.01%+5mA 0.01%+30mV, 0.01%+10mA 0.01%+50mV, 0.01%+10mA
Command Processing Time £¼20ms £¼20ms £¼20ms £¼20ms
Voltage Programming Speed(No load)
Rising time ¡Â 120§Â ¡Â 120§Â ¡Â 120§Â ¡Â 120§Â
Falling time ¡Â3.6s ¡Â3.6s ¡Â3.6s ¡Â3.6s
Transient Response time Less than 50§Á for output to recover to within 15mV following a change in output current from full load to half load or vice versa
Common matters RS-232C attached by default
Option Output at the rear side, input power (AC100, AC 110, AC 230), RS-485 communication, RS-485 to RS-232C Converter Analog Signal Input, Analog Signal Output, V-Sensing, OVP, OCP rack mount kit, RS-232C Cable
