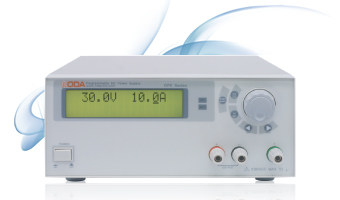

OPE-S Series

Giá bán: Liên hệ

Hãng sản xuất: ODA Korea

Danh mục: Power supply

Nhà cung cấp: Anh Nghi Son

Xuất sứ:

Bảo hành: 12

Gọi lại cho tôi

Liên hệ tư vấn

Hotline

support@ansgroup.asia

0911472255

Declaration of commercialization of the programmable DC Power Supply with the best technology!
Supply of Programmable DC Power Supply at low price
CV / CC mode operation
OUTPUT ON/OFF function provided
Able to store and recall up to five operation states (Voltage, Current)
19¡±Half x 2U slim size (less than 300 W)
RS-232C attached by default (RS-485 Option)
Specification
          Voltage
Current		 10A 20A 30A 50A 100A 200A 500A
9V OPE-910S OPE-920S OPE-930S OPE-950S OPE-9100S OPE-9200S OPE-9500S
18V OPE-1810S OPE-1820S OPE-1830S OPE-1850S OPE-18100S OPE-18200S OPE-18500S
30V OPE-3010S OPE-3020S OPE-3030S OPE-3050S OPE-30100S OPE-30200S OPE-30500S
50V OPE-5010S OPE-5020S OPE-5030S OPE-5050S OPE-50100S OPE-50200S OPE-50500S
120V OPE-12010S OPE-12020S OPE-12030S OPE-12050S OPE-120100S OPE-120200S OPE-120500S
200V OPE-20010S OPE-20020S OPE-20030S OPE-20050S OPE-200100S OPE-200200S OPE-200500S
250V OPE-25010S OPE-25020S OPE-25030S OPE-25050S OPE-250100S OPE-250200S OPE-250500S
300V OPE-30010S OPE-30020S OPE-30030S OPE-30050S OPE-300100S OPE-300200S OPE-300500S
500V OPE-50010S OPE-50020S OPE-50030S OPE-50050S OPE-500100S OPE-500200S OPE-500500S
¡Ø »ó±âÀÇ ¸ðµ¨ ¿Ü Á¦Ç°Àº ´ç»ç ¹× ´ç»çÀÇ ´ë¸®Á¡¿¡ ¹®ÀÇÇϽñ⠹ٶø´Ï´Ù



                 Parameter
Model		 OPE-3010S OPE-3050S OPE-30100S OPE-50200S
Output rating 0~30V, 0~10A  1CH 0~30V, 0~50A  1CH 0~30V, 0~100A  1CH 0~50V, 0~200A  1CH
Resolution
Programming/Readback ¡Â 7.5mV / ¡Â 4mA ¡Â 7.5mV / ¡Â 15mA ¡Â 7.5mV / ¡Â 25mA ¡Â 15mV / ¡Â 50mA
Display Meter 100mV / 100mA 100mV / 100mA 100mV / 1A 100mV / 1A
Programming Accuracy (@25¡É ±5¡É)±(%of output + offset)
Voltage 0.2% + 200mV 0.2% + 200mV 0.2% + 200mV 0.2% + 300mV
Current 0.2% + 50mA 0.2% + 250mA 0.2% + 500mA 0.2% + 1A
Read-back Accuracy (@25¡É ±5¡É)±(%of output + offset)
Voltage 0.2% + 200mV 0.2% + 200mV 0.2% + 200mV 0.2% + 300mV
Current 0.2% + 50mA 0.2% + 250mA 0.2% + 500mA 0.2% + 1A
Ripple & Noise ¡Â 2mVp-p, ¡Â 3mArms ¡Â 3mVp-p, ¡Â 10mArms ¡Â 10mVp-p, ¡Â 10mArms ¡Â 10mVp-p, ¡Â 20mArms
Load Regulation 0.01%+4mV, 0.01%+1mA 0.01%+8mV, 0.01%+5mA 0.01%+30mV, 0.01%+10mA 0.01%+50mV, 0.01%+10mA
Line Regulation 0.01%+4mV, 0.01%+1mA 0.01%+8mV, 0.01%+5mA 0.01%+30mV, 0.01%+10mA 0.01%+50mV, 0.01%+10mA
Command Processing Time £¼20ms £¼20ms £¼20ms £¼20ms
Voltage Programming Speed(No load)
Rising time ¡Â 120§Â ¡Â 120§Â ¡Â 120§Â ¡Â 120§Â
Falling time ¡Â3.6s ¡Â3.6s ¡Â3.6s ¡Â3.6s
Transient Response time Less than 50§Á for output to recover to within 15mV following a change in output current from full load to half load or vice versa
Common matters RS-232C attached by default
Option Output at the rear side, input power (AC100, AC 110, AC 230), RS-485 communication, RS-485 to RS-232C Converter Analog Signal Input, Analog Signal Output, V-Sensing, OVP, OCP rack mount kit, RS-232C Cable
