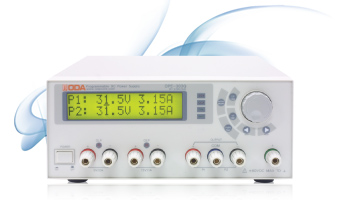

OPE-Q Series

Giá bán: Liên hệ

Hãng sản xuất: ODA Korea

Danh mục: Power supply

Nhà cung cấp: Anh Nghi Son

Xuất sứ:

Bảo hành: 12

Gọi lại cho tôi

Liên hệ tư vấn

Hotline

support@ansgroup.asia

0911472255

Declaration of commercialization of the programmable DC Power Supply with the best technology!
Supply of Programmable DC Power Supply at low price
CV / CC mode operation
Two power modes (+), (-) each variable output provided
5 V/ 2 A & 15 V/ 1 A fixed output provided
OUTPUT ON/OFF function provided
Tracking Mode (two outputs controlled at the same time) provided
Able to store and to recall up to five operation states (Voltage, Current)
Slim 19¡±Half x 2U size (less than 300 W)
RS-232C attached by default (RS-485 Option)

Use the communication interface that is provided in the OPE Series!

OPE Series provides RS-232C (RS-485 Option). This enables many functions such as control and data collection with the PC or PLC through RS-232C communication interface. Our company product enables programmer to produce application with ease by adopting standard SCPI programming language. Moreover, it is possible to develop the system with ease by using the application that is provided by our company.


Two channels can be controlled at once.

If single channel power supply was supplied for each producer when it comes to your company¡¯s mass production system, replace it with the power supply in two channels that supports our company¡¯s tracking mode! There is no need to set up two channels¡¯ voltage and current which is cumbersome. Instead, pressing simply one button, the tracking mode button can set up two channels in the same way using only one setting for the voltage, current and all the functions.

This supports the state storage function.

OPE Series can store and recall the voltage and current set by user. Even when a user is not an engineer, the user can use it easily for the production, product inspection, reliability test etc., with the Store and Recall function that set up and stored in advance.
Specification
               Parameter
Model		 OPE-185Q OPE-303Q OPE-305Q OPE-503Q
Output rating 0~18V, 0~5A 2CH 0~30V, 0~3A 2CH 0~30V, 0~5A 2CH 0~50V, 0~3A 2CH
Resolution
Programming/Readback ¡Â 6mV / ¡Â 1.5mA ¡Â 7.5mV / ¡Â 1mA ¡Â 7.5mV / ¡Â 1.5mA ¡Â 15mV / ¡Â 1mA
Display Meter 100mV / 10mA 100mV / 10mA 100mV / 10mA 100mV / 10mA
Programming Accuracy (@25¡É ±5¡É)±(%of output + offset)
Voltage 0.2% + 120mV 0.2% + 200mV 0.2% + 200mV 0.2% + 300mV
Current 0.2% + 25mA 0.2% + 15mA 0.2% + 25mA 0.2% + 15mA
Read-back Accuracy (@25¡É ±5¡É)±(%of output + offset)
Voltage 0.2% + 120mV 0.2% + 200mV 0.2% + 200mV 0.2% + 300mV
Current 0.2% + 25mA 0.2% + 15mA 0.2% + 25mA 0.2% + 15mA
Ripple & Noise ¡Â 2mVp-p, ¡Â 2mArms ¡Â 2mVp-p, ¡Â 2mArms ¡Â 2mVp-p, ¡Â 2mArms ¡Â 3mVp-p, ¡Â 2mArms
Voltage Programming Speed(No load)
Rising time ¡Â 40§Â ¡Â 40§Â ¡Â 40§Â ¡Â 70§Â
Falling time ¡Â1.2s ¡Â1.2s ¡Â1.2s ¡Â1.5s



               Parameter
Model		 OPE-802Q OPE-1001Q OPE-1201Q OPE-1501Q
Output rating 0~80V, 0~2A  2CH 0~100V, 0~1A  2CH 0~120V, 0~1A  2CH 0~150V, 0~1A  2CH
Resolution
Programming/Readback ¡Â 30mV / ¡Â 0.8mA ¡Â 40mV / ¡Â 0.5mA ¡Â 50mV / ¡Â 0.5mA ¡Â 50mV / ¡Â 0.5mA
Display Meter 100mV / 10mA 1V / 10mA 1V / 10mA 1V / 10mA
Programming Accuracy (@25¡É ±5¡É)±(%of output + offset)
Voltage 0.3% + 500mV 0.5% + 800mV 0.5% + 900mV 0.5% + 900mV
Current 0.2% + 15mA 0.2% + 15mA 0.2% + 15mA 0.2% + 15mA
Read-back Accuracy (@25¡É ±5¡É)±(%of output + offset)
Voltage 0.3% + 500mV 0.5% + 800mV 0.5% + 900mV 0.5% + 900mV
Current 0.2% + 15mA 0.2% + 15mA 0.2% + 15mA 0.2% + 15mA
Ripple & Noise ¡Â 6mVp-p, ¡Â 2mArms ¡Â 0.01%mVrms, ¡Â 2mArms ¡Â 0.01%mVrms,, ¡Â 2mArms ¡Â 0.01%mVrms,, ¡Â 2mArms
Voltage Programming Speed(No load)
Rising time ¡Â 70§Â ¡Â 70§Â ¡Â 70§Â ¡Â 70§Â
Falling time ¡Â1.5s ¡Â1.5s ¡Â1.5s ¡Â1.5s
°øÅë»çÇ× 5 V /2 A, 15 V/ 1 A fixed output provided
19inch half x 2U size : 213mm(W) x 88mm(H) x 292mm(D)
RS-232C attached by default
OPTION Output at the rear side, input power (AC 100, AC 110, AC 230), RS-485 communication, RS-232C Cable, RS-485 Analog Signal Input, Analog Signal Output, V-Sensing, OVP, OCP, rack mount kit
