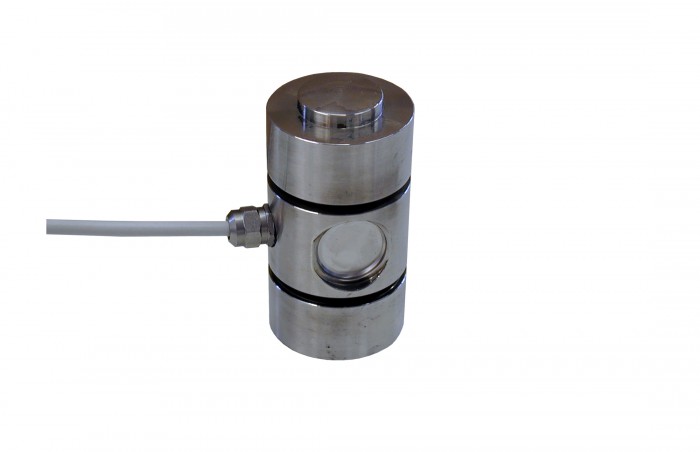

Load Cells CMH
Giá bán: Liên hệ
Hãng sản xuất: Pavonesistemi
Danh mục: Sensors
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255- Specially designed for industrial weighing of tanks, silos, vats, industrial ladles
- Good characteristics of precision and robustness
- Made of stainless steel
- Maximum resistance to shock and overload
- Widely used in food, chemical, pharmaceutical and steel
- Compensated temperature range can be extended to -10 to +90°C (option)
- Operating temperature at -35 to +150°C (option) using cable for high temperature (200°C) (option)
| Rated load (R.L.): | 2, 6, 10, 15, 20, 30, 40, 50, 60, 100, 150, 200 t |
| Rated output (R.O.): | 2 mV/V |
| Combined error: | ±0.1% of R.O. |
| Repeatability: | ±0.05% R.O. |
| Creep (20 minutes): | ±0.03% of R.L. |
| Temperature range: | -20 ÷ +65 °C |
| Compensated temperature range: | -10 ÷ +50 °C |
| Temp. effect (-10° to +50°C) on zero balance: | ±0.005% of R.O./°C |
| Temp. effect (-10°C to +50°C) on output: | ±0.005% on output/°C |
| Recommended input: | 5 ÷ 12 Vdc/Vac |
| Input resistance: | 350 ± 20 Ohms |
| Output resistance: | 350 ± 5 Ohms |
| Insulation resistance: | > 5000 M Ohms |
| Safe overload: | 150% of R.L. |
| Ultimate overload: | > 300% of R.L. |
| Max load deflection: | 0.3 mm |
| Degree of protection: | IP65 |
| Material: | Stainless steel 17-4PH |
| Electrical connection: | 6 conductors shielded cable; length 6 m |
