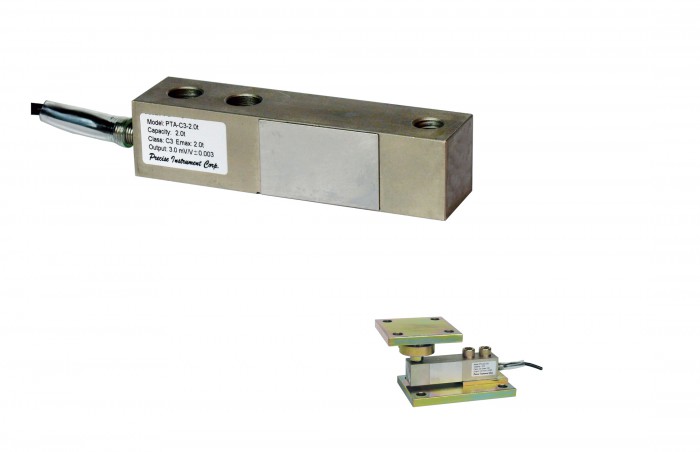

Load Cells PTA
Giá bán: Liên hệ
Hãng sản xuất: Pavonesistemi
Danh mục: Sensors
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255- Excellent accuracy, linearity and creep
- Made of nickel plated steel
- Approved 3000 division O.I.M.L. R60 Class C
- Strength to lateral loads higher than 50% of the PN
- IP67 protection
- Weighing of tanks, hoppers, belts, platforms, single cell systems, suspended load, automatic packaging machines
| Rated load (R.L.): | 500, 1000, 1500, 2000, 2500, 3000, 5000 Kg |
| Combined error: | ±0.02% of R.O. |
| Repeatability: | ±0.01 % of R.O. |
| Creep (30 minutes): | ±0.02% of R.O. |
| Safe overload: | 150% of R.L. |
| Ultimate overload: | 300% R.L. |
| Recommended input: | 5÷15 Vcc/ca |
| Input resistance: | 350 ± 3.5 Ohms |
| Output resistance: | 350 ± 3.5 Ohms |
| Insulation resistance: | ≥ 5000 M Ohms 50 VDC between the branches of the bridge and the body cell |
| Rated output (R.O.): | 3 ± 0.003 mV/V |
| Zero balance: | 1% R.O. |
| Temperature range: | -35 ÷ +65°C |
| Compensated temperature range: | -10 ÷ +40°C |
| Temp. effect (-10° to +50°C) on zero balance: | 0.018% of R.O./10°C |
| Temp. effect (-10°C to +50°C) on output: | 0.014% on output/10°C |
| Degree of protection: | IP67 |
| Material: | Stainless steel |
| Electrical connection: | 4 conductors shielded cable; length 4 m |
| Precision class: | 3000 n. OIML |
