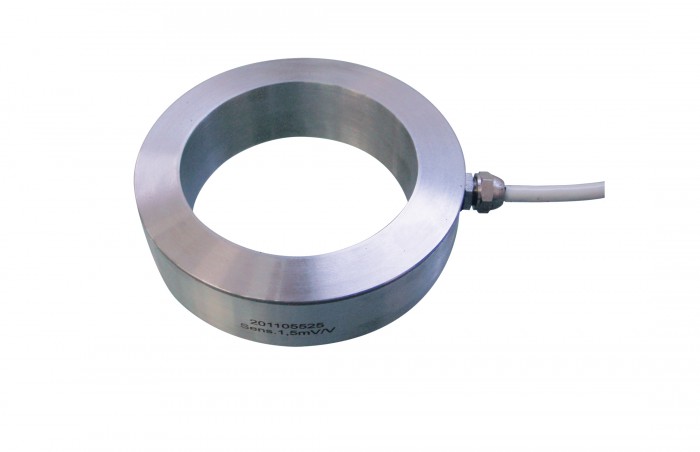

PSRT loadcells ring type Pavone Sistemi
Giá bán: Liên hệ
Hãng sản xuất: Pavonesistemi
Danh mục: Loadcells
Bảo hành: 0
Gọi lại cho tôi
0911472255- Protection degree: IP65-67
- Capacity: 1000 ÷ 400.000 kg
- Material: stainless steel 17.4 PH
Suitable for:
- tension measuring
- rolling mill stands
- construction safety
- designed for use in polymer processing in applications where it is required to measure the reaction force produced by the extru-sion pressure
TECHNICAL CHARACTERISTICS PSRT
| Capacity: | 1000 ÷ 400.000 kg |
| Electrical excitations: | 2÷15 Vcc/ca |
| Nominal sensitivity: | 1,5 - 2 mV/V |
| Zero temperature coeff: | ± 0,005% F.S/°C |
| Span temperature coeff.: | ± 0,005% F.S/°C |
| Combined error: | ± 0,15% F.S. |
| Repeatability: | ± 0,02 F.S. |
| Nominal load creep (20’): | ± 0,02 F.S. |
| Input resistence: | 700 ± 20 Ohms |
| Output resistence: | 700 ± 5 Ohms |
| Insulation: | > 5000 M Ohms |
| Safe overload: | 150 % F.S. |
| Ultimate overload: | > 300 % F.S. |
| Compensated temperature range: | -10 ÷ + 50 °C |
| Operating temperature range: | -20 ÷ + 70 °C |
| Protection degree: | IP65-67 |
| Material: | 17.4 PH Stainless Steel |
Accessories are not to be considered included in the price of each product.
All the above is purely illustrative and not to be understood demanding towards Pavone Sistemi
