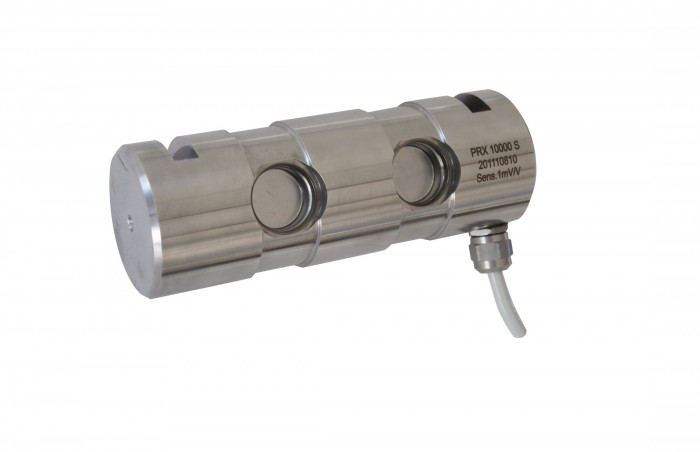

PRN-PRX loadcell pin Pavone Sistemi

Giá bán: Liên hệ

Hãng sản xuất: Pavonesistemi

Danh mục: Loadcells

Bảo hành: 0

Gọi lại cho tôi

Liên hệ tư vấn

Hotline

support@ansgroup.asia

0911472255

  • Designed for measurement, weighing systems or overload protection for cranes
  • Double-ended shear beam
  • Made of stainless steel, with excellent resistance to shock and overload
On request:
  • Version “high temperature”
  • Version “custom made”



TECHNICAL CHARACTERISTICS PRN-PRX

Rated load (R.L.): PRN from 500 to 4.000kg; PRX from 5.000 to 100.000kg
Combined error: < ±0.1% of R.O.
Repeatability: < ±0.02% of R.O.
Creep (20 minutes): < ±0.03% of R.O.
Safe overload: 150% of R.L.
Ultimate overload: 300% R.L.
Recommended input: 5÷15 Vdc/ac
Input resistance: 350 ± 20 Ohm
Output resistance: 350 ± 5 Ohm
Insulation resistance: > 5000 M Ohm
Rated output (R.O.): 1 ± 0.1% mV/V
Zero balance: < ±2% of R.O.
Temperature range: -20 ÷ +70°C
Compensated temperature range: -10 ÷ +50°C
Temperature effect on zero balance: < ±0.005% SN/°C
Temperature effect on output: < ±0.005% sull'uscita/°C
Deflection: 0.4 mm
Degree of protection: IP65
Material: Stainless steel
Electrical connection: 6 conductors shielded cable; lenght 5 m

MODEL CAPACITY A B C D E G ØH I
PRN 500 500 116 80 6 20 20 10 30 6
PRN 1000 1000 116 80 6 20 20 10 30 6
PRN 2000 2000 116 80 6 20 20 10 30 6
PRN 4000 4000 116 80 6 20 20 10 30 6
PRX 5000 5000 140 100 8 30 20 15 50 8
PRX 10000 10000 140 100 8 30 20 15 50 8
PRX 20000 20000 140 100 8 30 20 15 50 8
PRX 40000 40000 290 220 20 100 30 30 80 15
PRX 60000 60000 290 220 20 100 30 30 80 15
PRX 80000 80000 305 235 20 115 30 30 100 15
PRX 100000 100000 305 235 20 115 30 30 100 15






Accessories are not to be considered included in the price of each product.
All the above is purely illustrative and not to be understood demanding towards Pavone Sistemi
