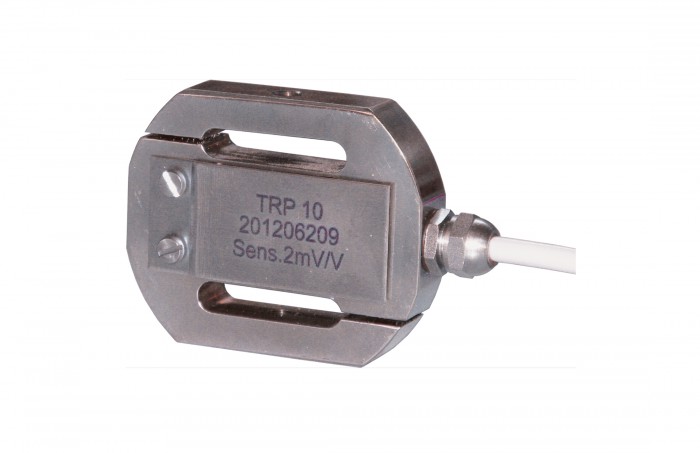

Load Cells TRP
Giá bán: Liên hệ
Hãng sản xuất: Pavonesistemi
Danh mục: Sensors
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255| Rated load (R.L.): | 2÷50 kg |
| Rated output (R.O.): | 2.0 mV/V ± 0.1% |
| Temperature effect on zero balance: | ±0.005% R.O./°C |
| Temperature effect on output: | ±0.005% on output/°C |
| Combined error: | ±0.05% of R.O. |
| Repeatability: | ±0.02% of R.O. |
| Creep (20 minutes): | ±0.03% of R.O. |
| Input resistance: | 350 ± 20 Ohm |
| Output resistance: | 350 ± 5 Ohm |
| Insulation resistance: | > 5000 M Ohm |
| Recommended input: | 2÷15 Vcc/ca |
| Temperature range: | -20 / +70°C |
| Compensated temperature range: | -10 / +50°C |
| Safe overload: | 150% of R.L. |
| Ultimate overload: | > 300% of R.L. |
| Degrees of protection: | IP65 |
| Deflection: | 0.4 mm |
| Ultimate sideload: | 300% of R.L. |
| Material: | Stainless steel 17-4PH (Avional 2kg) |
