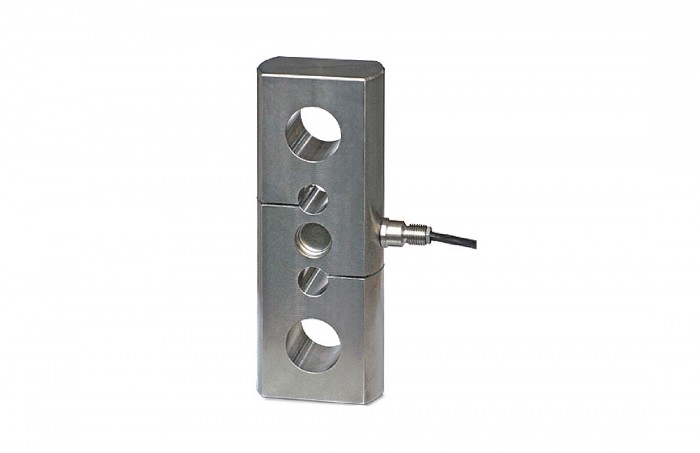

Load Cells PSTR
Giá bán: Liên hệ
Hãng sản xuất: Pavonesistemi
Danh mục: Sensors
Nhà cung cấp: Anh Nghi Son
Xuất sứ:
Bảo hành: 12
Gọi lại cho tôi
0911472255- Suitable for tensile loads, for dynamometric measures and as load limiter for lifting combined with our instrumentation
- 17-4PH stainless steel construction
- Holes for standard shackles
- Combined error +/- 0.03%
- IP68 degree of protection
| Capacity: | 5000, 10000, 20000 kg |
| Rated Output: | 2 mV/V +/-0.1% |
| Temperature effect on zero | 0.005% /°C |
| Temperature effect on span: | 0.003% /°C |
| Compensated temperature range: | -10°C / +50°C |
| Operating temperature range: | -20°C / +70°C |
| Creep (30 min.): | 0.03% |
| Max supply voltage without damage: | 15 Volt |
| Input resistance: | 350 Ohms +/-5 |
| Output resistance: | 350 Ohms +/-5 |
| Zero balance: | +/- 1% |
| Insulation resistance: | >5000 Mohms |
| Safe Overload (% Full Scale) | 150% FS |
| Ultimate Overload (% Full Scale): | >300% |
| Deflection at nominal load: | 0.3mm |
| Cable length: | 10m |
